9 5/8 inch stainless steel 316L water well casing pipe for oil well K55 N80 Q125:
Specifications:
1. Standard:API 5CT
2. Material:Stainless steel 304 304L, 316 316L, carbon steel K55, J55,N80,P110,H40,Q125, L80,M65, etc.
3. Size: OD 60mm - 508mm, or from 2 3/8" -20"
4. Wall thickness: 5.21mm-16.13mm
5. Length: R1(4.88-7.62m), R2(7.62-10.36m), R3(10.36-14.63m)
6. Connection type of API/ISO tubing: EUE, NUE
7. Connection type of API/ISO casing: STC,LTC,BTC, EUE, NUE
8. Surface treatment: blank oil painting+green/red/white/brown painting, Polishing
9. Usage: oil pipeline, industrial gas, water transportation
Note: All the sizes can be produced according to the clients` requirements
Applications for Stainless Steel Tubing Seamless casing:
Common Applications for Stainless Steel Tubing Stainless steel tubing has a number of uses in a wide variety of industries. It can be used during manufacturing in processing plants or can become part of a final product. Stainless steel tubing can also be used in pipelines to transport oil, gas, water, or chemicals. The stainless steel tubing that is supplied by Oasis oil tools can used in a variety of industries, including:
More photos

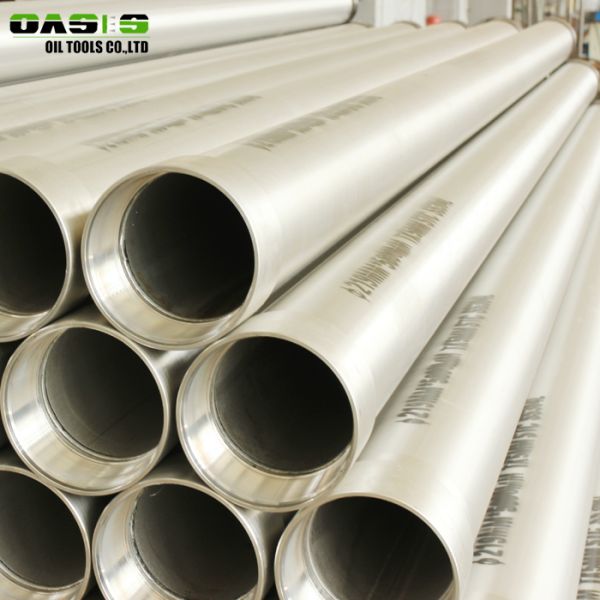

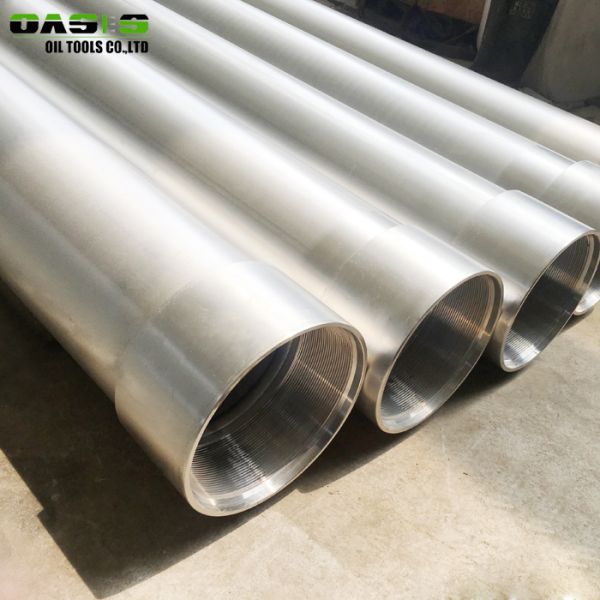

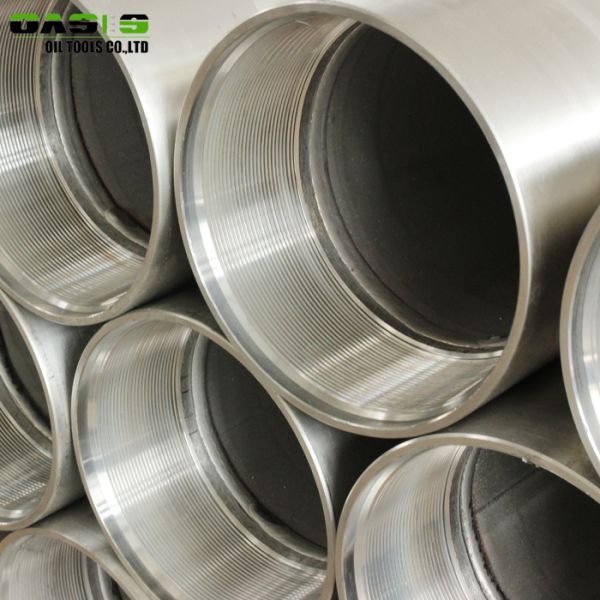

Detailed images of Heat seamless steel casing pipes API 5CT standard oilfield well tubing for water well drilling:
The API connection way as:
BTC/LTC/STC/PL
EUE/NUE
FLANGE connection, threaded flange connection.
Specification Table
| Size |
Weight |
Steel Grade |
Wall Thickness |
| Inch |
mm |
ppf |
Kg/m |
|
mm |
| 4-1/2 |
114.30 |
11.49 |
17.12 |
304,304L,316,316L, |
6.35 |
| 13.21 |
19.68 |
304,304L,316,316L |
7.37 |
| 5 |
127.00 |
15.07 |
22.45 |
304,304L,316,316 |
7.52 |
| 18.34 |
27.31 |
304,304L,316,316L |
9.29 |
| 21.57 |
32.12 |
304,304L,316,316L |
11.10 |
| 5-1/2 |
139.70 |
17.09 |
25.44 |
304,304L,316,316L |
7.72 |
| 20.07 |
29.89 |
304,304L,316,316L |
9.17 |
| 22.83 |
33.99 |
304,304L,316,316L |
10.54 |
| 7 |
177.80 |
22.92 |
34.12 |
304,304L,316,316L |
8.05 |
| 25.98 |
38.69 |
304,304L,316,316L |
9.19 |
| 29.09 |
43.31 |
304,304L,316,316L |
10.36 |
| 9-5/8 |
244.48 |
43.26 |
64.41 |
304,304L,316,316L |
11.05 |
| 46.75 |
69.61 |
304,304L,316,316L |
11.99 |
| 10-3/4 |
273.05 |
39.38 |
58.64 |
304,304L,316,316L |
8.89 |
| 5015 |
74.67 |
304,304L,316,316L |
11.43 |
| 13-3/8 |
339.73 |
53.42 |
79.54 |
304,304L,316,316L |
9.65 |
| 66.96 |
99.69 |
304,304L,316,316L |
12.19 |
| 16 |
406.4 |
63.43 |
94.45 |
304,304L,316,316L |
9.53 |
| 73.78 |
109.86 |
304,304L,316,316L |
11.13 |
| 18-5/8 |
473.10 |
85.62 |
127.49 |
304,304L,316,316L |
11.05 |
| 20 |
508.00 |
92.74 |
138.09 |
304,304L,316,316L |
11.13 |
| 105.49 |
157.07 |
304,304L,316,316L |
12.70 |
Packaging & Shipping
TP304 API seamless steel stainless well casing with thread connection:
1) The plastics threads cap packing for the pipes and the plastic cap on the side of the pipes(high quality supplier Oem/Odm 300series Stainless Steel Pipe /Tube).
2) the bule plastic caps be covered on the both side of the pipes(high quality supplier Oem/Odm 300series Stainless Steel Pipe /Tube).
3) Under the same shipping fees, we choose the quick shipping line to save time for the clients.(high quality supplier Oem/Odm 300series Stainless Steel Pipe /Tube).
Company Information
Oasis located in the industrial park of high-tech enterprises in Fengquan District, Xinxiang City, covers more than 20000 square meters with more than 150 staff, among them 6 persons are senior engineer. OASIS is a famous manufacturer which integrates the research and development, design, manufacture and sell water well screens/ Johnson screens, oil well screens and sand control well screens, bridge slotted well screens, pipe based well screens, perforated pipe (base pipe), gravel pre-packed well screens, wedge wire screens, passive water intake screens etc. water, oil and gas well filtering products as well steel tubes and pipes and industrial parts.
